Services We Offer

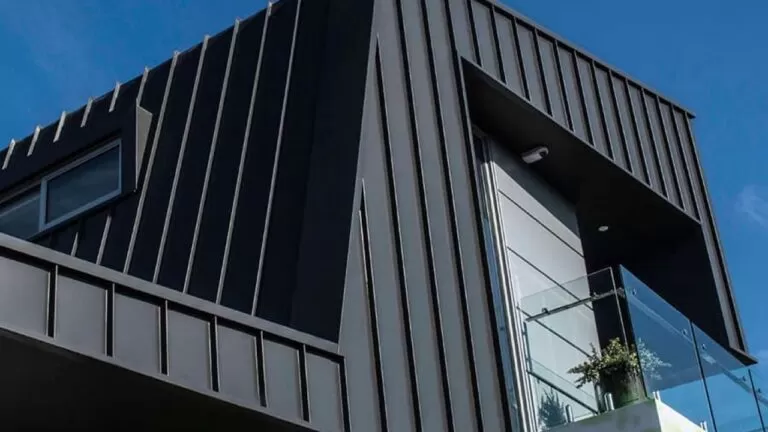

Aluminium plastic composite panel is compounded with top and bottom layers of aluminium sheet, Anti-toxic polyethylene core material. Both surfaces are rolled and coated with special baking varnish.

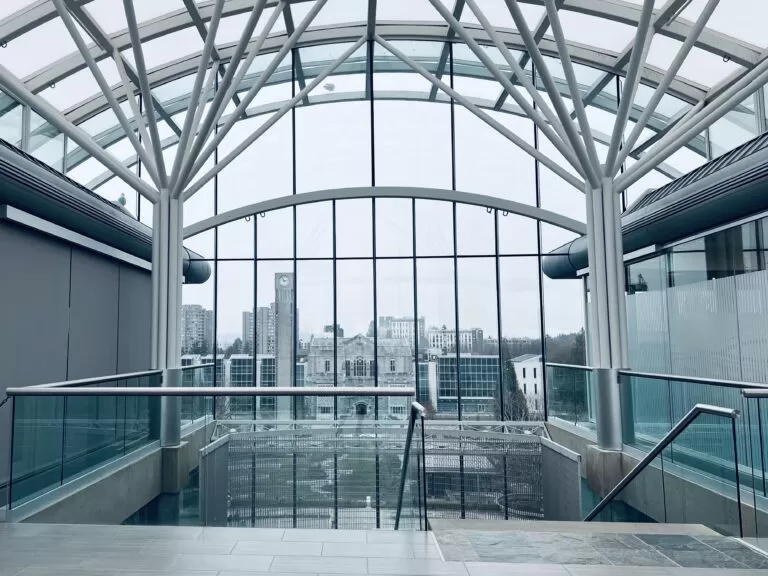

Steel Structure is a combination of some steel elements like tubes & I beams. It is used to carry the unitized curtain wall, the elevation for canopies or any other feature in the building. It can be a fixed structure or movable joints, which control the movements of the structure itself. The finish of steel structure is hot deep galvanized & fire rated where required.

As a part of the quality procedures, we seek the steel structure works to be done right by means of implementing the suitable and approved series of regular checks and inspections. Therefore, we conclude the following welding tests:

The mentioned tests shall be conducted for the verification of compliance with the approved procedures for steel structure with quality standards. Moreover; our company owns trained certified welders for keeping the true accuracy and standardized level of work.

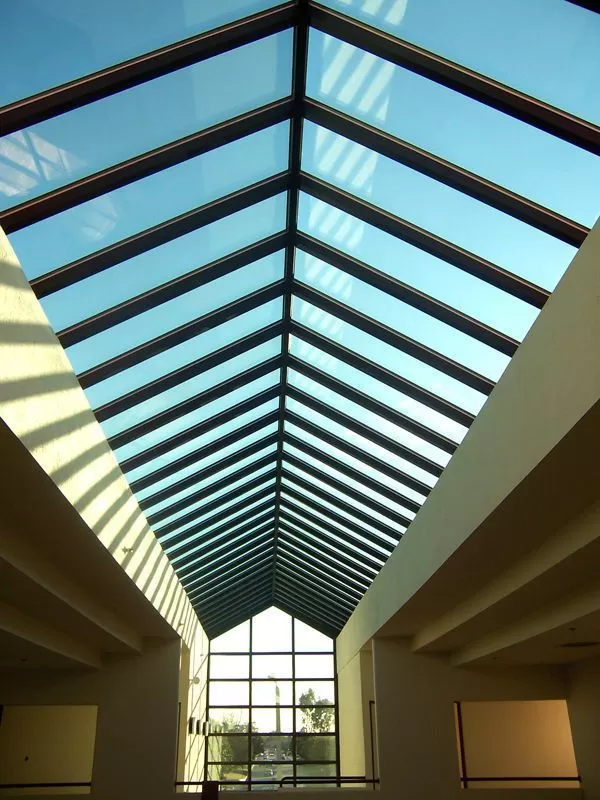

Sky light is a different usage of the day natural light that provides effective internal lighting .It is an opening in the roof surface which can be made of stainless steel, Aluminium or glass with a transparent or translucent material. It usually consists of a steel structure with aluminium cladding or steel structure with spider glazing or may be as a combination of both.

Also, it gives an interesting feature in increasing building market values by giving aesthetic look to the building as an architectural feature, through specifying both of the lighting control and shading strategy. The shapes of sky lights can be used as a straight or curve-shaped as it is considered as a distinctive architectural advantage.

For safety purpose, we use the laminated glass in the fabrication process as it is assembly consisting of two plies of glass which are bonded together by an interlayer material. It is more durable, weather resistant and minimizes the risk of glass breakage, which assures the glass protection.

Skylight exterior Aluminum finish can be Kynar or powder coating as per the requirements of the architect and to match the specified finish. The exterior aluminium surface of the skylight finish, thickness and color are specified as per the requirement of the engineer.

In installation phase, the sky light system should be in accordance with the instructions and standard of our system. It is also remarkably necessary to attach to structure to permit sufficient adjustment to accommodate construction tolerances and other irregularities.

For the testing, the skylight undergoes to the required quality tests from approved independent testing laboratories for the purpose of attesting and certifying the full compliance with the specifications like air tightness, water tightness, and wind load resistance.

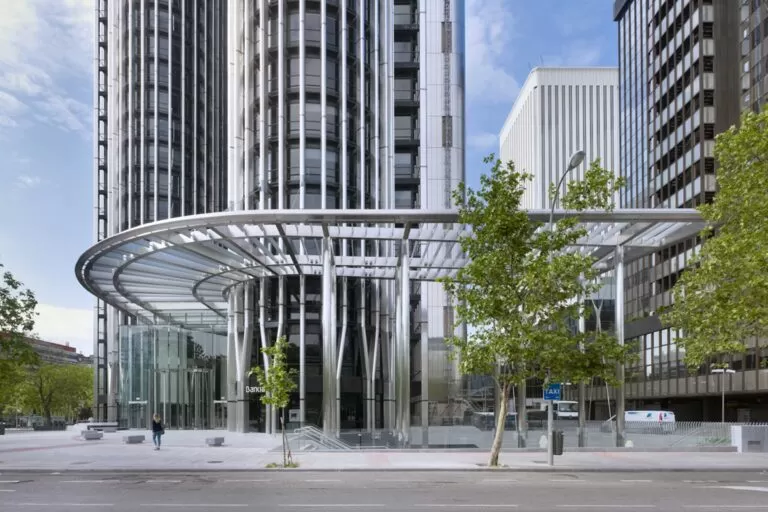

Canopies create an esthetical difference in modern architecture as it is used at the entrance of the building or as a decorative feature in the roof. It usually consists of steel structure with aluminum cladding or steel structure with spider glazing or combination of both. The purpose of using stainless canopy systems is to avoid the natural effects of the rain and snow.

The exterior steel finish shall be galvanized or hot deep galvanized which provides additional protection and isolation from the corrosive attacks of chlorides and sulphides, which can be specified as per the requirement of the project.

The aluminium cladding used in fabricating the canopy shall be (4) mm thick specified as per the structural calculations.

Whenever have glass canopy, always use the laminated glass in fabricating the canopy as it minimizes the risk of injury from glass breakage. The laminated glass is strongly resist pent ration of any object through the canopy due to the combination of the tough an resilient PVB interlayer and glass combination.

Frameless glazing suspended from the building structure. Sheer glass wall with unbeatable, versatility, individuality and variability. Matchless elegance at the entrance with suspended glass supported by glass fins, to break the restricted inside view of the complex.
This system combines specially processed and toughened glass panes hanged on custom designed brackets anchored to the ceiling. Each pane is anchored separately by means of a weight – bearing bolt that is inserted from the bush through a hole in the glass to the super structure.

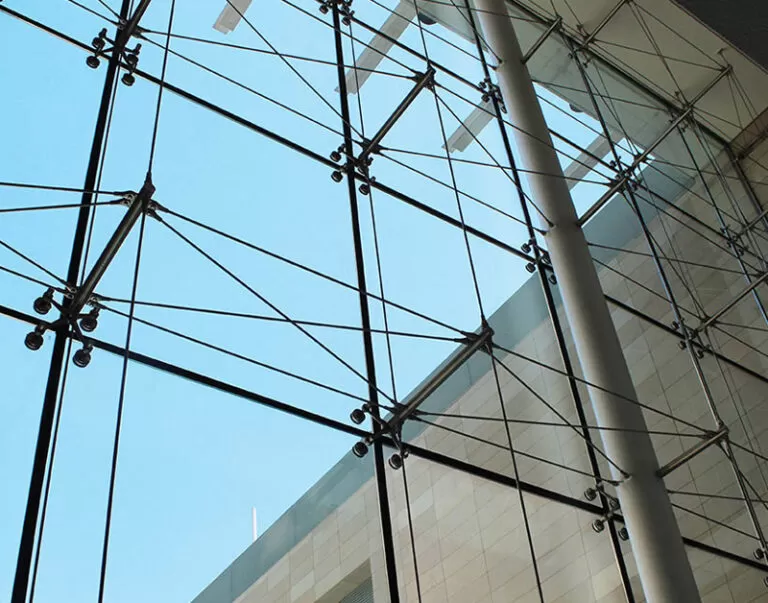

More visibility more space… SPIDER GLASS is a modern solution for exterior bolted glass assemblies, which secures the glazing to a support structure by means of point-fixings.

The high-grade stainless steel fixings are designed to absorb all static and dynamic loads (i.e. the dead weight of the glass, wind loading, snow loads and differential expansion due to temperature difference) and distribute them to the support structure. Intermediate elements which are inserted between the bolt and the glass ensure:
• uniform transmission of stresses whilst avoiding local stresses;
• A watertight facade.

All-glass structures can be created, ensuring interiors are generously provided with natural light. When refurbishing older buildings, the clarity of the glass allows the original structure to be exposed in its true form.

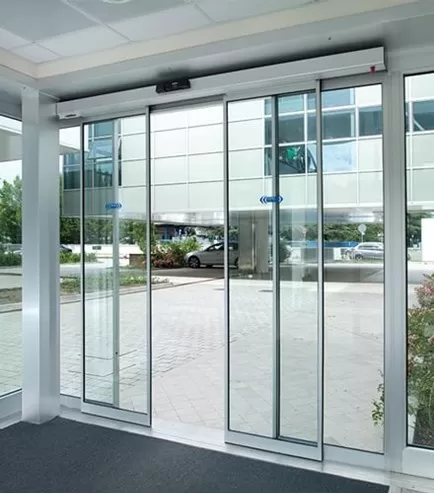

Automatic Solutions are highly practical in terms of their details and configuration and always provide the highest level of quality and functional reliability.

Now you can choose from what is possibly the largest range of automatic door system, revolving door systems, automatic sliding partition systems, automatic sliding door operators and swing door operators. With DORMA or Equitant brand, you can realise almost any design you may have in mind, secure in the knowledge that you have the expertise and the experience of a globally operating company on your side.

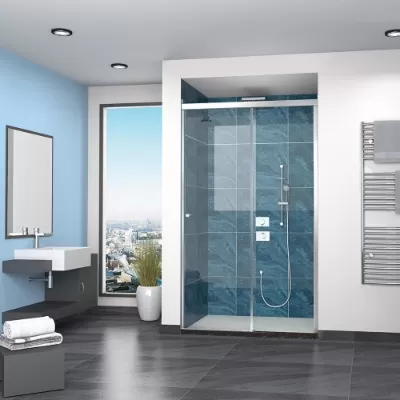

A must in modern bathroom concepts, we provide solutions for shower enclosures in glass – be it framed or frameless.
